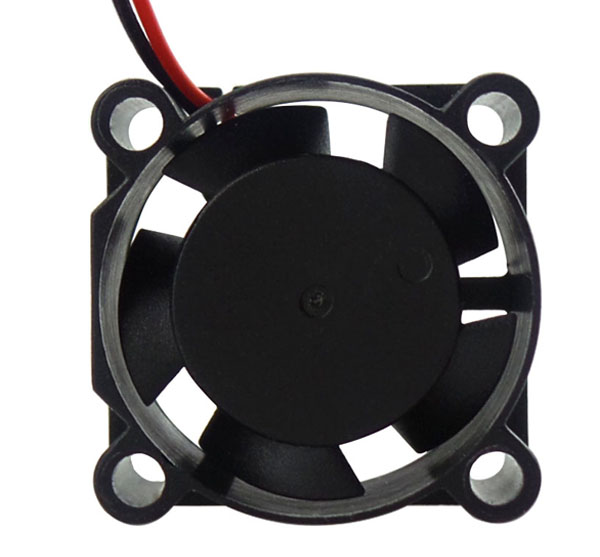

3v 5v 25x25x10mm 3D printer dc cooling fan

Product Numbers:2510

Price:

Product introduction:25x25x10 dc fan

order

Material:

Frame and Impeller: Thermal Plastic UL 94-0
Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
Insulation Resistance: 10MΩ Or Over With a DC 250V Megger
Dielectric Withstand Voltage: AC500V 1S
Allowable Ambient Temperature Range:-10ºC~+70ºC(Operating)

-40ºC~+70ºC(Storage)

* this is normal specification, for the speed, current, bearing type, connector, function, waterproof level, wires etc all can be customized.

Model	Bearing	Rated	Operation	Current	Input	Speed	Air Flow	Static	Niose	Weight
	System	Voltage	Voltage		power			Pressure	Level
		(V)	(V)	(A)	(W)	(RPM)	(CFM)	(mm-H2O)	(dB-A)	(g)
2510		5	4.5~5.5	0.20	1.00	13000	2.90	6.93	30.78	6
	Sleeve			0.16	0.80	10000	2.22	5.01	24.11	6
				0.14	0.70	7000	1.53	2.40	18.97	6
				0.20	1.00	13000	2.90	6.93	30.78	6
	Ball			0.16	0.80	10000	2.22	5.01	24.11	6
				0.14	0.70	7000	1.53	2.40	18.97	6
		12	10.8~13.2	0.12	1.44	13000	2.90	6.93	30.78	6
	Sleeve			0.10	1.20	10000	2.22	5.01	24.11	6
				0.08	0.96	7000	1.53	2.40	18.97	6
				0.12	1.44	13000	2.90	6.93	30.78	6
	Ball			0.10	1.2	10000	2.22	5.01	24.11	6
				0.08	0.96	7000	1.53	2.40	18.97	6

Functions:
PWM (Pulse Width Modulation)
FG (Frequency Generator / Tachometer)
RD (Rotation Detector)
AR (Auto Restart)
TC (Thermal Control)

Protection: Up to IP 68

*** 2 lead wires, 3 lead wires,4 lead wires for your choice

Others:

1.	Application	1.Home appliance 2.Kitchen 3.Car industry 4.Telecom 5.Medical Equipment 6.UPS Power 7.LED Lighting 8.Computer Case 9.CPU 10.Safty Equipment 11.Office Electrics 12.SUP Power 13.Communication 14.Printing Equipment 15.Projector 16.Digital Photoelectric 17.Humidifier/Air Purifier 18.Mining machine ...
2.	OEM/ODM	Acceptable
3.	Sample Service	Sample Can Be free,But You're Suggestsd Paying For Freight.
4.	Quality Assurance	12 Months
5.	Lead time	1. Samples within 4-7 days 2. Mass production within 10-25 days 3. If do the waterproof fan need 1 week more
6.	Shipping	1. Be delivered by express (UPS, FedEx, DHL, TNT). 2. Be shipped by vessel or by air or as customers'requirement.

Company profile:

- Producing cooling fan since 2000.

- DC/AC/EC/Blower cooling fan manufacturing, sales and service enterprise.

- Certificate:UL,CE, ROHS, CCC, ISO9001.

- Our fan ranges from 20mm to 254mm,including ball bearing,hydraulic bearing and sleeve bearing type.
